CS / ONH / DIFFUSIBLE HYDROGEN – ANALYZERS
Bruker’s innovative and reliable industrial solutions support industries and organizations in delivering high-quality products and materials based on the know-how of many decades. Bruker offers innovative solutions for rapid and precise elemental analysis of carbon, sulfur, oxygen, nitrogen, and hydrogen in inorganic materials.
Download BrochureSpark Spectrometers
G4 ICARUS Series-2 Carbon-Sulfur Analyzer
Key Features:- Powerful HF induction furnace for fast and precise automatic simultaneous determination of Carbon and Sulfur in a wide variety of matrices like metals, cements, minerals, coal, etc.
- Lance-free operation
- Fully automatic furnace cleaning; noiseless, brush, and vacuum-free dust removal into the crucible, hence no need for any external vacuum pump
- Silicon nitride ceramic nozzle for a splatter-free combustion process
- Simple operation, minimized maintenance, maximum sample throughput, no chopper motor
G4 PHOENIX Diffusible Hydrogen Analyzer
Key Features:- Fast heating infrared furnace up to 900°C, degassing tube
- Determines diffusible hydrogen (dH) in various sample matrices
- Simple and reliable calibration guaranteed by a gas calibration unit with 10 different volumes
- System incorporates a highly sensitive stable thermal conductivity detector (TCD)
- Suitable to accept large samples & specimen according to AWS A4.3.
- Upgradeable to G4 PHOENIX MS with quadrupole mass spectrometer
G8 GALILEO Oxygen / Nitrogen / Hydrogen Analyzer
Key Features:- ONH determination based on the inert gas fusion (IGF) principle, optical temperature control

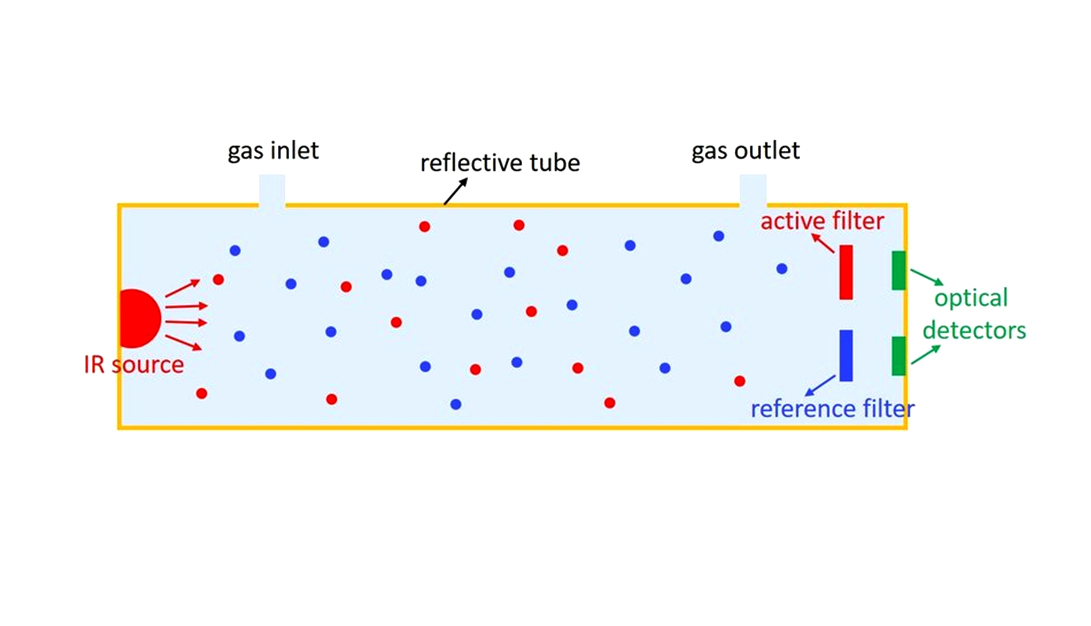

- Long-term stable detection system with solid-state NDIR detector for CO (quantitative measurements kept intact) and thermal conductivity cell for N2 and H2
- Option for G8 Galileo MS with O, N, H, Ar & TDMS with external IR furnace
- Options for automatic sample and crucible handling, electrode cleaning and automatic gas dose calibration
G6 LEONARDO Single (O, N, H) or dual element (ON or OH) analyzer
Key Features:- Inert gas fusion measurement technique
- NDIR detector for direct CO measurements
- Dual Channel TCD with integrated heat exchanger
- Lower electrode with EZdrive
- Nitrogen carrier gas for H measurements
